Cheng Li Automobile Group
Группа Продуктов
Запрос
Вид оплаты: L/C,T/T,Paypal
транспорт: Ocean,Land
$45800
1-4 Piece/Pieces
$45300
5-9 Piece/Pieces
$45000
≥10 Piece/Pieces
марка: CLW
У вас есть медицинское оборудование: да
Тип коробки передач: Руководство по эксплуатации
Старый и новый: Новый
Стандарты выбросов: 5 ЕВРО
топливо: Дизель
Длина тела: 3-8 мес.
место происхождения: Китай
Vehicle Size: 5364mm×2030mm×2540mm
Curb Weight: 2950kg
Сидячие места: 7
WheelBase: 3366mm
Number Of Tires: 4
Размер шин: 235/60R17LT
лошадиная сила: 205
Тормозная система: Гидравлическое давление
|
Maximum total mass |
3495kg |
||
|
Number of passengers |
7-8（Number of stretchers included） |
||
|
wheelbase |
3366mm |
||
|
Body size: length × width × height |
|||
|
Medical cabin dimensions: length × width × height |
2710mm×1730mm×1710mm |
||
|
Approach/departure Angle |
|||
|
Maximum speed |
130km/h |
||
|
Motor type |
TZ202XSSQC |
||
|
Rated power/horsepower |
Rated 70KW/ Peak 150KW/204PS |
||
|
Battery type |
Lithium iron acid battery (battery capacity 88.8kwh) |
||
|
Battery thermal management |
hydrothermal |
||
|
Charging mode |
Dc + AC |
||
|
Charger power |
11kw charger |
||
|
Driving type |
Motor front-facing front-wheel drive |
||
|
Minimum ground clearance |
170mm |
||
|
Suspension type |
Front independent suspension, rear non-independent suspension (2 springs) |
||
|
Brake type |
Front and rear disc brakes |
||
|
tyre |
215/75R16RT（(Aluminum alloy rim), tire pressure monitoring |
||
|
Appearance of medical warning |

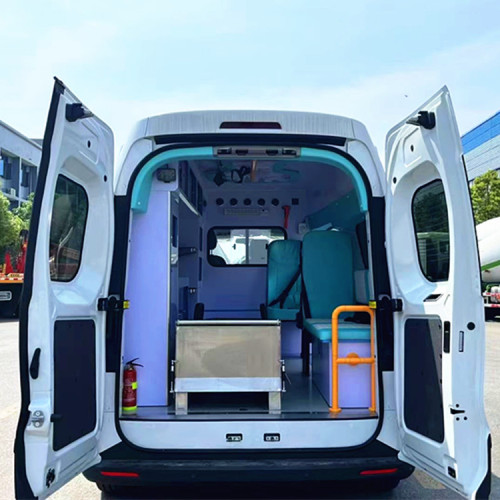

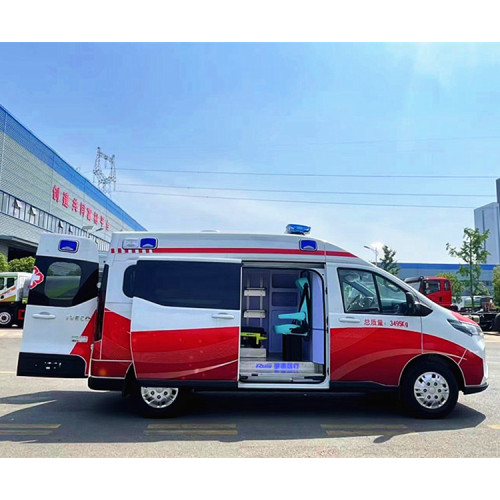

Steel reinforced frame structure design, safe and reliable. The right side of the car body is equipped with a sliding door, and the rear end adopts a double-open tail door structure with large opening width, which is convenient for doctors and patients and stretchers. |
||
|
Vehicle appearance |
The whole body is white, the front, both sides of the body and the rear door are affixed with the Red Cross logo, and the body color strips are affixed all around, which are bright and eye-catching and effective warning. Medical cabin glass is covered with 2/3 frosted cellophane to effectively protect patient privacy |
||
|
Warning luminaire |
The front is equipped with I-type alarm light, one shape, beautiful and generous. Horn power 100W. Blue and white flash lights are installed on both sides and at the tail for effective warning. |
||
|
floodlight |
4 12V cabin lights, stable light source, large irradiation surface, 2 infusion spotlights. |
|
inverter |
Vehicle-mounted sine wave 1000W, stable frequency, stable voltage, stable output power, providing power supply for the equipment on the vehicle; 2 sets of 220V/12V multi-functional sockets (can be connected to two/three holes, AC/DC dual). |
|
Sterilizing lamp |
1 intelligent timed ultraviolet disinfection, to ensure the health and safety of the cabin. |
|
Air conditioning/heating |
1set of rear air conditioning and rear heating device, independent control of heating and cooling, according to the need to reasonably regulate the cabin temperature. |
|
ventilator |
A set of DC12V multi-functional ventilation fan with suction and exhaust is installed on the roof of the car, which can effectively ensure the efficient circulation of air in the medical cabin. |
|
Medical cabin cabinet/interior configuration |
|
|
Center partition wall assy |
Between the cab and the medical cabin, a set of new environmental protection materials are installed in the middle partition wall, and a glass observation window is set on the middle partition wall to facilitate the front and rear cabin observation and communication. |
|
Cabinet assembly |
Install a set of new environment-friendly materials made of long strip equipment cabinet, cabinet body is provided with drawers, space cabinet and other storage space; Install a set of new environment-friendly materials made of oxygen cylinder cabinet, cabinet body can accommodate 2 10L oxygen cylinders; Install a set of new environmental protection materials made of hanging cabinet, hanging cabinet adopts sliding door structure, easy to open the door; Install a set of long seat cabinet, including cushion, backrest, two-point safety belt. |
|
Medical cabin trim |
Medical cabin decoration: made of new lightweight materials, waterproof, mildew proof, antibacterial, easy to clean. Medical cabin floor: made of medical floor leather material, non-slip, waterproof, mildew proof, antibacterial, easy to clean. |
|
Side door sliding window |
Flat sliding glass window |
|
walkie-talkie |
One hands-free microphone is installed in the cockpit and one in the medical cabin to facilitate communication and exchange between the front and rear cabin personnel. |
|
extinguisher |
The medical cabin is equipped with a 1kg dry powder fire extinguisher. |
|
Contaminant bucket |
The medical cabin is equipped with a covered foot-operated dirt bucket. |
|
Safety handrail |
Install a long handrail at the top of the medical module. |
|
Emergency hammer |
Install an emergency hammer in the medical bay. |
| Продажа единиц жилья | : | Piece/Pieces |
|---|
The file is encrypted. Please fill in the following information to continue accessing it
Производительность: 30unit/month
транспорт: Ocean,Land
Место происхождения: Китай
Поддержка о: 30unit/month
Сертификаты : 3c
Порт: shanghai,tianjin,qingdao
Вид оплаты: L/C,T/T,Paypal
Инкотермс: FOB,CIF,EXW
