Вид оплаты: L/C,T/T
транспорт: Ocean,Land
$41300
1-4 Piece/Pieces
$41000
5-9 Piece/Pieces
$40800
≥10 Piece/Pieces
марка: CLW
Старый и новый: Новый
Тип коробки передач: Руководство по эксплуатации
топливо: Дизель
место происхождения: Китай
Vehicle Size: 11000×2550×3995mm
Box Volume: 65cbm
Total Mass: 40000kg
Curb Weight: 10610kg
Колесная база: 5380+1310+1310 мм
Number Of Tires: 12
Размер шин: 12R22,5
Brake System: Air brake

|

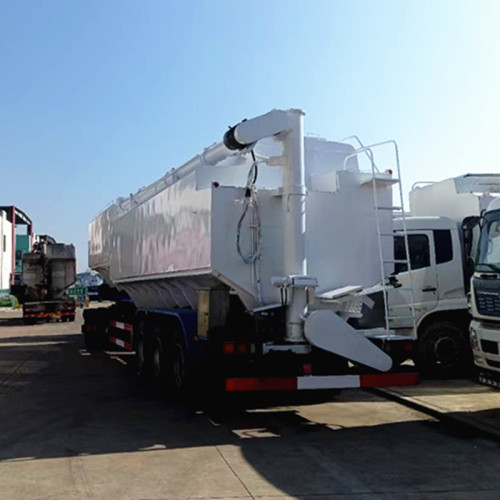

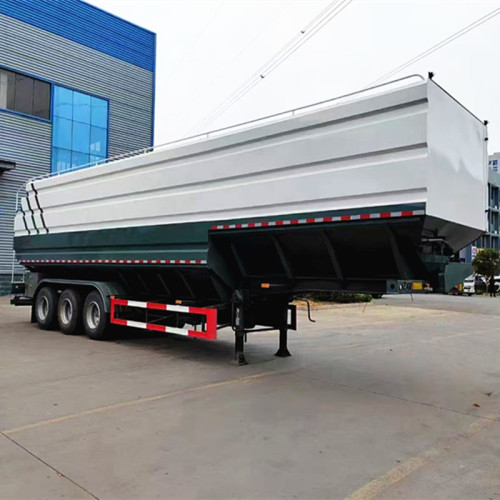

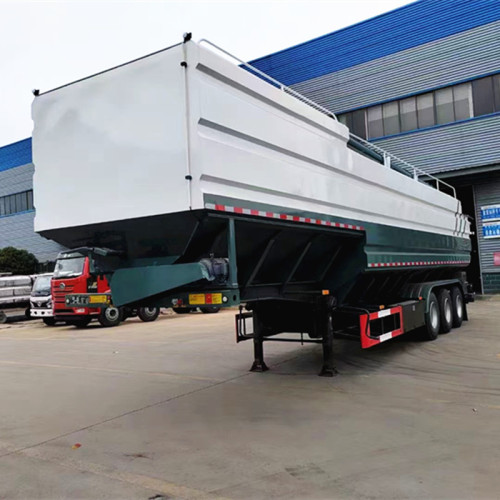

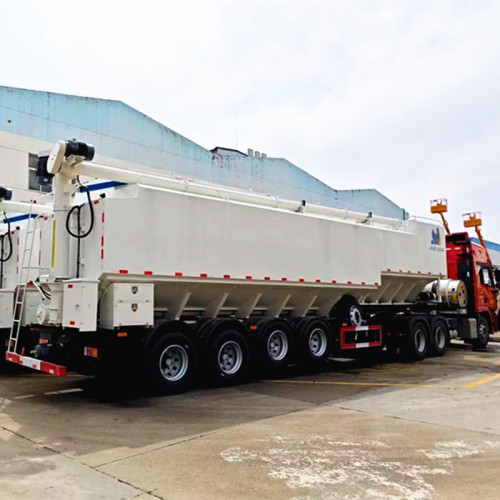

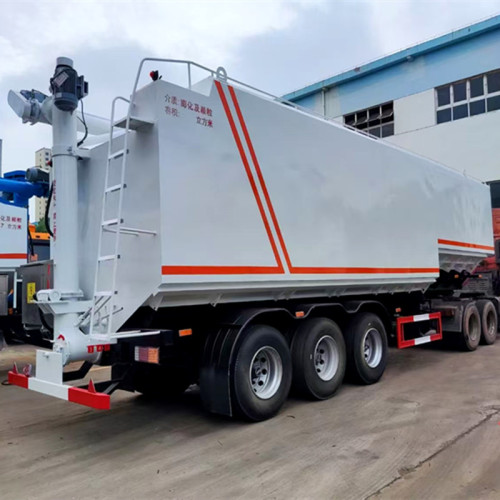

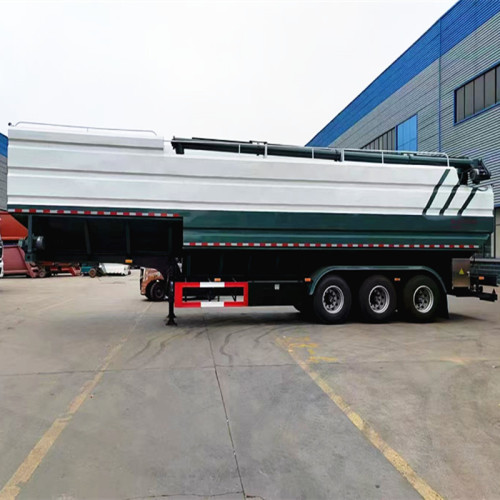

Technical parameters of 65cbm bulk feed trailer |
|||
|
Vehicle size |
11600×2550×3995
|
Standard volume of material tank |
65m³ |
|
Load weight |
30 tons |
Total mass |
40000Kg |
|
Rated quality |
29390Kg |
Quality of equipment |
10610Kg
|
|
Hydraulic system winch |
Imported hydraulic components |
Electric system winch |
Domestic parts/imported parts optional |
|
Number of feed silo |
4 |
Material of tank body |
3mm manganese steel plate |
|
Discharge time |
40-60 minutes |
Discharge speed |
≥500kg/min |
|
Discharge residue rate |
≤1% |
Maximum elevation of gargoyles |
60° |
|
Horizontal maximum transfer distance |
7.2 metres |
Maximum vertical feed height |
9 metres |
|
Discharge rotation angle |
360 degrees (180 degrees on one side) |
|
|
|
Feed truck chassis parameter configuration |
|||
|
13 tons Guangdong Fuhua Bridge, 28 tons of legs, 90 traction pins, 16 tons of brake pads, 12R22.5 tires, Vehicle size: 11600×2550×3995mm |
|||
|
Optional installation of bulk feed truck |
|||
|
Electric winch can be selected according to the actual situation of users (three-phase electrical supporting place) , for the non-three-phase electrical place, electric system winch can also choose three-phase generator or choose hydraulic winch. The whole vehicle has 3 winches driven by 35.5 kw motors, the top winch is lifted by hydraulic control, the electric control part of the electric winch can rotate 180 ° from left to right can be made in China or imported parts, optional wireless remote unloading operation. Hydraulic system winch, all hydraulic system parts, hydraulic pump, hydraulic motor, hydraulic multi-way valve, high-pressure explosion-proof pipe are imported parts, hydraulic pump for vane pump, uniform flow, smooth operation, low noise, more efficient and durable than gear pumps. The whole winch is composed of a horizontal winch, a vertical winch and a lifting winch. |
|||


Преимущества прицепа Feed Chied Cheng Li 65CBM заключаются в следующем:

| Продажа единиц жилья | : | Piece/Pieces |
|---|
The file is encrypted. Please fill in the following information to continue accessing it
Производительность: 30unit/month
транспорт: Ocean,Land
Место происхождения: Китай
Поддержка о: 30unit/month
Сертификаты : 3c
Порт: Tianjin,shanghai,qingdao
Вид оплаты: L/C,T/T
Инкотермс: FOB,CIF,EXW
