Вид оплаты: L/C,T/T,Paypal

транспорт: Ocean,Land

$28300
1-4 Piece/Pieces
$28000
5-9 Piece/Pieces
$27500
≥10 Piece/Pieces

Свяжитесь

Атрибуты продукта Возможности поставки ...

Атрибуты продукта

марка: CLW

Тип коробки передач: Руководство по эксплуатации

Старый и новый: Новый

Стандарты выбросов: Евро 3, 5 ЕВРО

топливо: Дизель

место происхождения: Китай

Размер автомобиля: 5990*1980*2950 мм

Gross Mass: 4495kg

Curb Weight: 4365kg

Seating: 2+3

Number Of Tires: 6

Wheelbase: 2800mm

Tyre Size: 7.00R16LT

Horse-power: 115HP

Displacement: 2892ml

Brake System: Air brake

Описание продукта

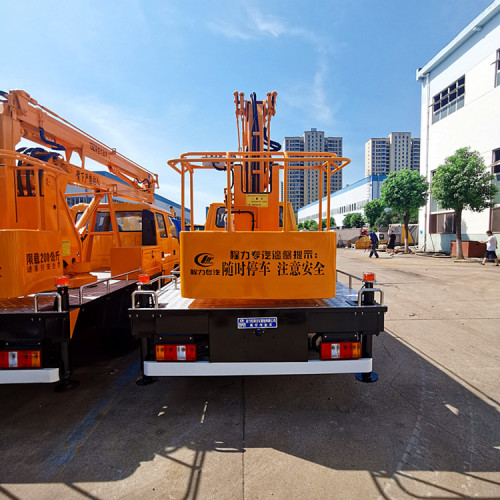

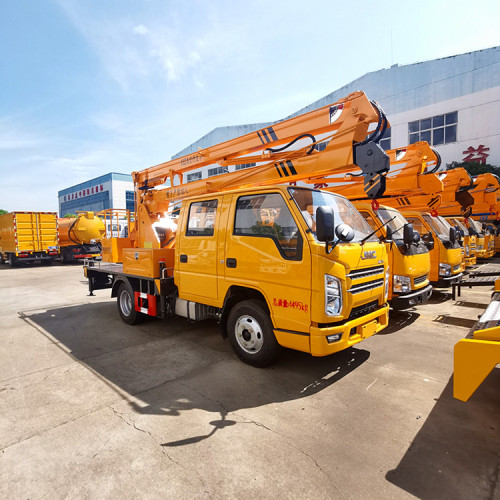

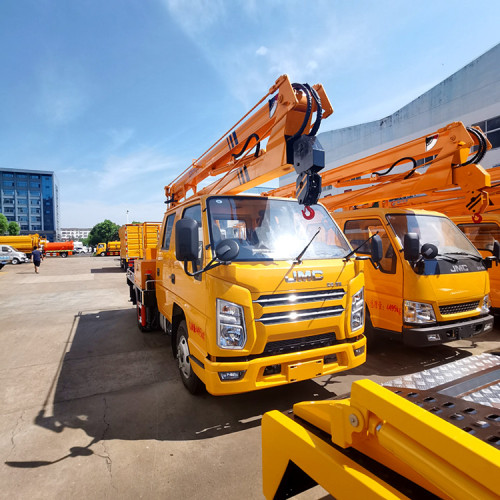

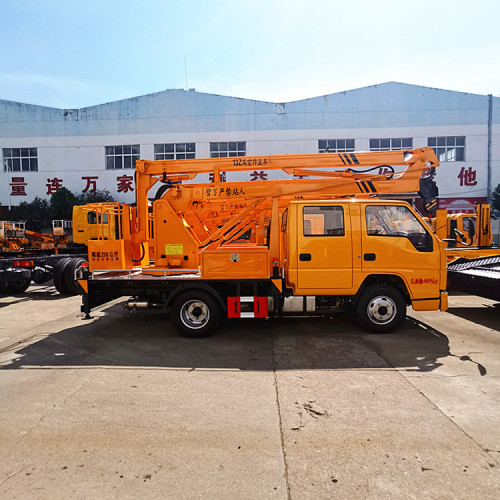

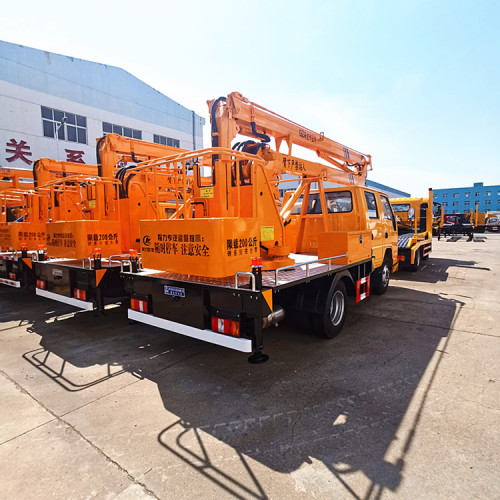

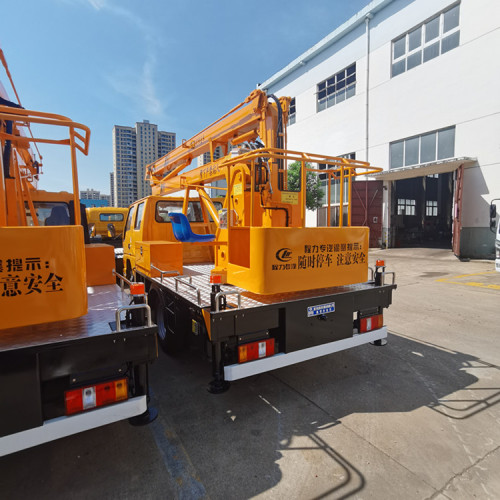

Introduction of the New JMC Folding Arm Aerial Work Vehicle

Main technical parameters of 16m aerial work vehicle
Category	Project	Unit	Data
Size parameters	Total length	mm	5990
	Total width	mm	1980
	Total height	mm	2950
Quality parameters Main parameters	Number of passengers (including drivers)	People	2
	Total mass	kg	4495
	Working platform rated load	kg	200
	Maximum operating height	m	16
	Maximum operating height operating range	m	2.9
	Maximum operating range	m	26
	Maximum operating range when operating height	m	4.5
Driving parameters	Front suspension	mm	1110
	Rear suspension	mm	1525
	Stretch back	mm	/
	Wheelbase	mm	3360
	Maximum speed	Km/h	100
	Minimum ground clearance	mm	380
	Approach angle	.	18
	Leave the corner	.	14

Introduction of the new Jiangling Shunda folding arm aerial work truck:

1. Configure the Bucket Truck

• Boom structure: mostly three-section folding arms, some models of the boom section is quadrilateral or pentagon.

• Working range: Take the 13m blue brand double-row folding arm aerial working vehicle as an example,

with a maximum working radius of 5.6m and a maximum working height of 13m.

• Rotation function: The whole car adopts 360° hydraulic rotation, which can realize 360° rotation of the working arm,

which is flexible and convenient. Some models of the turntable have two-way 360° rotation,

and the turboworm deceleration mechanism is adopted.

• Hook configuration: Some models have 1-ton hooks, and the maximum lifting weight can reach 1 ton.

• Other configuration: the rear leg usually has 2 strobe lights, the exit leg operating box is installed with lighting and level,

and the compartment is lined with 3mm anti-slip steel plate.

2. Functional features of Aerial bucket truck

• High safety performance: equipped with platform overload protection system,

leg pressure control system, operation arm limit position limit, loading and unloading action interlock system,

emergency stop device, etc. Some models also have soft leg protection device, emergency manual operation system, etc.

• High working efficiency: Pentagon working arm, compact structure, telescopic synchronization,

wide working range, faster working efficiency; Synchronously realize turntable rotation, boom amplitude change,

boom expansion and platform rotation.

• Ease of operation: The control system is highly integrated, and all actions are operated by two to three levers (handles);

Onboard operation adopts integrated electronic control valve block mode, beautiful layout, smooth operation,

through the throttle valve to achieve stepless speed regulation; Some models of hanging baskets adopt external tie rod mechanical leveling,

turntable and hanging baskets are equipped with start and stop switches.

• Адаптироваться к различным условиям труда: стабильность ноги H типа хороша, может адаптироваться к различным условиям труда,

Ноги могут работать одновременно или отдельно; The front leg of some models adopts K-type square box full package front leg,

which has a large span and can be adjusted separately or telescoped synchronously.

3. Chassis configuration of Folding Arm Aerial Work Vehicle

• Power system: 115 HP engine, high torque, low fuel consumption, full power, low running noise, high speed,

плавность, долговечность, стабильность и безопасность.

• Передача: оснащена пятиступенчатой коробкой передач, удобным сдвигом, безопасным и надежным.

• Шина: выберите 7.00R16 Стальная проволочная шина, меньше слоев занавеса, тонкая сторона шины, большая радиальная эластичность,

good buffer performance, large load capacity.

• Cab: New Euro 6 two-row cab, large space, good driving experience, interior work is exquisite,

equipped with multi-functional steering wheel, original air conditioning, direction assist, original ABS,

some models also have exhaust brake.

4.Aerial work vehicle Application scenario

Suitable for municipal, electric power, street lamp, advertising, communication, photography, landscape, shipbuilding,

wharf, airport port, rescue, large-scale industrial and mining enterprises and other industries installation

and maintenance and climbing operations.

Упаковка и доставка

Продажа единиц жилья	:	Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

Попросите пароль

Возможности поставки и дополнительная информация

Производительность: 30unit/month

транспорт: Ocean,Land

Место происхождения: Китай

Поддержка о: 30unit/month

Сертификаты : 3c

Порт: tianjin,shanghai,qingdao

Вид оплаты: L/C,T/T,Paypal

Инкотермс: FOB,CIF,EXW
